行業(yè)應(yīng)用
APPLICATION
|

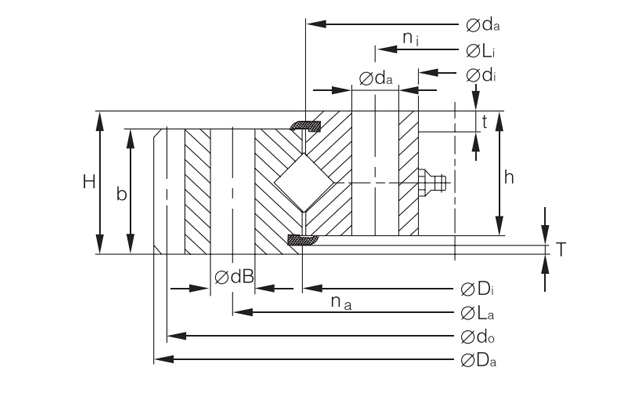

| 基本型號 | 重量 | 安裝尺寸 | 旋轉(zhuǎn)精度 | 對應(yīng)型號 | | Kg | Da | di | La | na | dB | Li | H | h | b | do | m | z | INA | | XRUA12.0235 | 13 | 318.8 | 171 | 275 | 12 | 13 | 195 | 40 | 35 | 35 | 312 | 4 | 78 | XA120235N | | XRUA18.0309 | 30 | 408.4 | 235 | 359 | 24 | 13 | 259 | 60 | 52.5 | 52.5 | 400 | 5 | 80 | XA180309N | | XRUA16.0407 | 33 | 503.3 | 335 | 455 | 30 | 13 | 359 | 50 | 45 | 45 | 495 | 5 | 99 | XA160407N | | XRUA26.0475 | 64 | 598.2 | 382 | 540 | 36 | 16 | 410 | 65 | 60 | 60 | 588 | 6 | 98 | XA260475N | | XRUA14.0540 | 39 | 640.3 | 471 | 585 | 40 | 13 | 495 | 48 | 41 | 41 | 630 | 6 | 105 | XA140540N | | XRUA26.0560 | 90 | 708 | 456 | 624 | 28 | 18 | 496 | 68 | 61 | 61 | 690 | 10 | 69 | XA260560N | | XRUA24.0574 | 84 | 695 | 480 | 640 | 18 | 18 | 508 | 77 | 42 | 42 | 685 | 5 | 137 | XA240574N | | XRUA16.0596 | 63 | 712.3 | 510 | 650 | 24 | 18 | 542 | 55 | 48 | 48 | 702 | 6 | 117 | XA160596N | | XRUA14.0640 | 50 | 742.3 | 571 | 685 | 44 | 13 | 595 | 50 | 43 | 43 | 732 | 6 | 122 | XA140640N | | XRUA24.0685 | 115 | 830.1 | 577 | 753 | 24 | 22 | 617 | 68 | 61 | 61 | 816 | 8 | 102 | XA240685N | | XRUA20.0720 | 87 | 844.3 | 630 | 780 | 30 | 18 | 662 | 59 | 52 | 52 | 834 | 6 | 139 | XA200720N | | XRUA14.0753 | 65 | 862.3 | 674 | 800 | 28 | 18 | 706 | 50 | 43 | 43 | 852 | 6 | 142 | XA140753N | | XRUA20.0810 | 158 | 964 | 730 | 870 | 24 | 18 | 762 | 90 | 73 | 73 | 944 | 8 | 118 | XA200810N | | XRUA20.0818 | 100 | 940.1 | 728 | 875 | 36 | 18 | 760 | 60 | 53 | 53 | 930 | 6 | 155 | XA200818N | | XRUA28.0845 | 200 | 1008 | 730 | 920 | 40 | 22 | 770 | 87 | 80 | 80 | 990 | 10 | 99 | XA280845N | | XRUA22.0895 | 145 | 1038.1 | 790 | 960 | 32 | 22 | 830 | 68 | 61 | 61 | 1024 | 8 | 128 | XA220895N | | XRUA28.0995 | 212 | 1158 | 882 | 1068 | 40 | 22 | 922 | 83 | 73 | 73 | 1140 | 10 | 114 | XA280995N |
|
|
